This article is (or will soon be) unavailable. It has been replaced by the following article(s):

The new faceplate is coloured in one piece (the sides are the same colour as the front) and has a subtly embossed Niko logo on the front (lower left corner) whereas the old faceplate had white sides and a printed logo on the side. With this modification, we meet the rising demand for single-tone switching material.

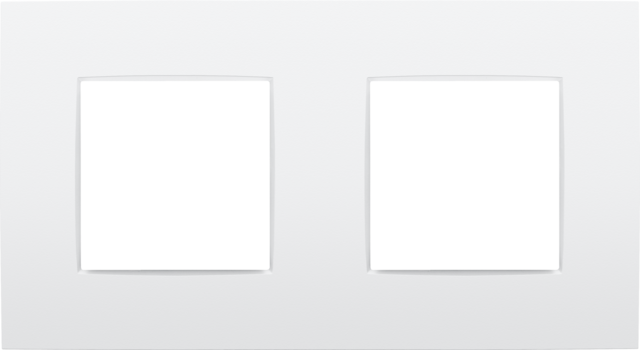

Twofold faceplate with 71 mm centre distance, Niko Intense lunar white coated

Reference code
131-76800

No longer available since October 2024

No longer available
Technical datasheets
Technical manuals
Inspection certificates
Certificaten CE-Marking

Description

Twofold faceplate with 71 mm centre distance from the range Niko Intense. Niko Intense lunar white coated

Specification description

Twofold faceplate with 71 mm centre distance, Niko Intense lunar white coated.

  • Double faceplate for two switches.
  • Colour: enamelled lunar white (approximately NCS S 1002 - B50G, RAL 000 90 00)
  • Frame composition: It is made of dimensionally stable pc+asa.
  • Varnish upper frame: The upper frame is enamelled lunar white.
  • Centre-to-centre distance: 71 mm
  • Surface-mounting height: max. 8.5 mm
  • Fire safety
    • self-extinguishing: complies with a filament test of 650°C
    • halogen-free
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Dimensions (HxWxD): 85 x 154 x 8.9 mm
  • Certification marks: CEBEC, VDE, SEMKO, NF, KEMA, ÖVE
  • Marking: CE
