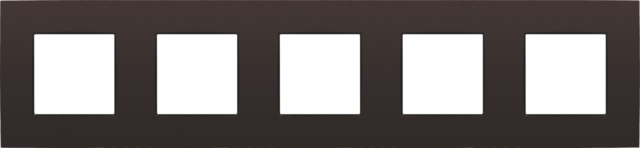

Fivefold faceplate, 71 mm centre distance, Niko Intense dark brown coated

Fivefold faceplate with 71 mm centre-to-centre distance from the range Niko Intense. Niko Intense dark brown coated

Fivefold faceplate, 71 mm centre distance, Niko Intense dark brown coated.

• Fivefold faceplate for five switches.
• Colour: enamelled dark brown (approximately NCS S 8505 - Y20R, RAL 060 30 05)
• Frame composition: It consists of an upper frame and lower frame that are mechanically interconnected.
• Material upper frame: The upper frame is made from impact-resistant, dimensionally stable polycarbonate.
• Material lower frame: The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA).
• Varnish upper frame: The upper frame is enamelled dark brown.
• Varnish lower frame: The lower frame is enamelled dark brown.
• Centre-to-centre distance: 71 mm
• Surface-mounting height: max. 8.5 mm
• Fire safety
  • self-extinguishing: complies with a filament test of 650°C
  • halogen-free
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Dimensions (HxWxD): 85 x 367 x 8.9 mm
• Certification marks: CEBEC, KEMA, NF, VDE, ÖVE, SEMKO
• Marking: CE
