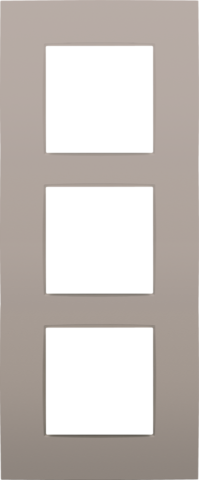

Threefold faceplate, 60 mm centre distance, vertical, Niko Intense bronze coated

Threefold faceplate with 60 mm centre-to-centre distance, vertical, from the range Niko Intense. Niko Intense bronze coated

Threefold faceplate, 60 mm centre distance, vertical, Niko Intense bronze coated.

• Threefold faceplate for three switches.
• Colour: enamelled bronze (approximately NCS S 5005 - Y20R, RAL 080 50 05)
• Frame composition: It consists of an upper frame and lower frame that are mechanically interconnected.
• Material upper frame: The upper frame is made from impact-resistant, dimensionally stable polycarbonate.
• Material lower frame: The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA).
• Varnish upper frame: The upper frame is enamelled bronze.
• Centre-to-centre distance: 60 mm
• Surface-mounting height: max. 8.5 mm
• Fire safety
  • self-extinguishing: complies with a filament test of 650°C
  • halogen-free
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Dimensions (HxWxD): 203 x 85 x 8.9 mm
• Certification marks: CEBEC, NF, ÖVE, KEMA
• Marking: CE
