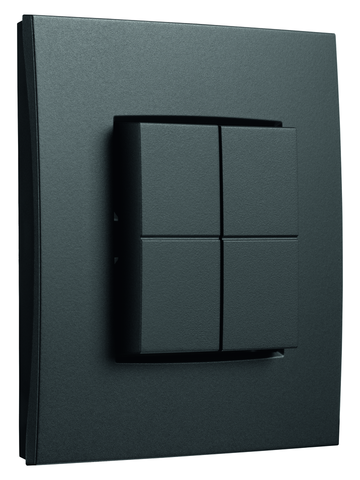

Niko dimmer switch for Hue system, anthracite coated

With this wireless and battery-free dimmer switch, you can operate the Philips Hue lamps effortlessly. Determine in the Philips Hue app what each button must do (switching on and off, dimming, activating scene settings). Mechanism including push button and faceplate anthracite coated. Philips Hue Bridge v2 required and not included.

Niko dimmer switch for Hue system, anthracite coated.

• Power supply: integrated kinetic energy Harvester
• Mounting height: 110 cm
• The maximum temperature difference between the Niko dimmer switch and a receiver should not exceed 60 °C
• Maximum range (indoor): Up to 20 m
• Operating frequency: 2,4 GHz (2402 to 2480 MHz)
• Number of configurable switches: 4
• Humidity: 0 – 95 % relative humidity, non condensing
• Configuration: Philips Hue app
• Antenna: integrated antenna
• Function: The dimmer switch consists of a base, a double key and a single faceplate.
• Communication protocol: Zigbee® Green Power
• Maximum radio frequency power: 7 dBm
• Operating frequency: 2.4 GHz
• Protection degree: IP20
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Dimensions (HxWxD): 83 x 83 x 15 mm
• Weight: 45.6 g
• Marking: CE

Base for the Niko dimmer switch for Hue System.

• Number of control buttons: 4 control buttons
• Fixing method

screw fixing or gluing

• Marking: CE

Double key, for wireless dimmer switch (Hue®, Bluetooth®, EnOcean®, KNX®), anthracite coated.

• Number of control buttons: 4 control buttons
• Material central plate: The central plate is enamelled and made of rigid PC and ASA.
• Colour: enamelled anthracite (approximately NCS S 7502 - R, RAL 7022)
• Dismantling: To dismount simply pull the central plate off the mechanism.
• Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
• Fire safety
  • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
  • the plastic parts of the central plate are halogen-free
• Dimensions of finishing: 45 x 45 mm (HxW)
• Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
• Marking: CE

Single faceplate, Niko Intense anthracite coated.

• Simple faceplate for one switch.
• Colour: enamelled anthracite (approximately NCS S 7502 - R, RAL 7022)
• Frame composition: It consists of an upper frame and lower frame that are mechanically interconnected.
• Material upperframe: The upperframe is made from impact-resistant, dimensionally stable polycarbonate.
• Material lower frame: The lower frame is made of dark grey polycarbonate (PC) + acrylic-styrene-acrylate (ASA).
• Varnish upperframe: The upperframe is enamelled anthracite.
• Surface-mounting height: max. 8.5 mm
• Fire safety
  • self-extinguishing: complies with a filament test of 650°C
  • halogen-free
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Dimensions (HxWxD): 85 x 85 x 8.9 mm
• Certification marks: CEBEC, KEMA, NF, VDE, ÖVE, SEMKO
• Marking: CE
