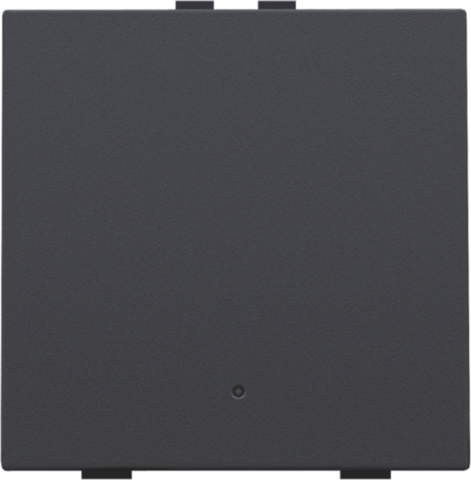

Single push button with LED for Niko Home Control, anthracite coated

You can perform one operation with this push button. It is attached to the wall-mounted printed circuit board via a click mechanism. An LED indicates whether the light is switched on or off. Switch including button. Finishing colour: anthracite coated.

Single push button with LED for Niko Home Control, anthracite coated.

• Material central plate: The central plate is enamelled and made of rigid PC and ASA.
• Lens: The key on the push button is fitted at the bottom with a small amber-coloured LED (1.5 x 1.5 mm) to indicate the status of the action.
• Colour: enamelled anthracite (approximately NCS S 7502 - R, RAL 7022)
• Fire safety
  • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
  • the plastic parts of the central plate are halogen-free
• Input voltage: 26 Vdc (SELV, safety extra-low voltage)
• Dismantling: To dismount simply pull the push button off the wall-mounted printed circuit board.
• Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
• Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
• Marking: CE
