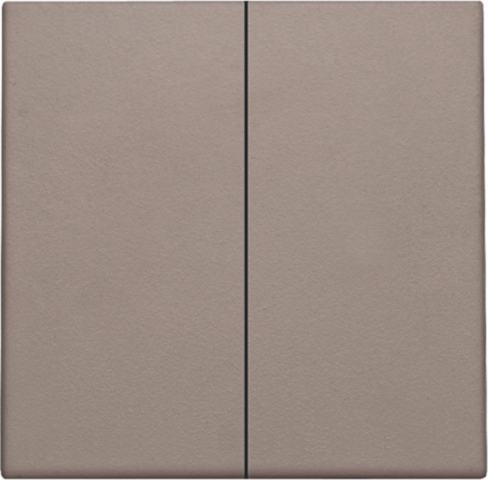

Finishing set for double electronic switch or push button, greige

Finishing set for double electronic switch or push button. Finishing colour: greige.

Finishing set for double electronic switch or push button, greige.

• Function: The key and the intermediate plate (board) form one unit.
• Number of control buttons: 2 control buttons
• Material central plate: The central plate is enamelled and made of rigid PC and ASA.
• Colour: greige (mass-dyed, approximately NCS S 5005 - Y50R, RAL 080 60 05)
• Dismantling: To dismount simply pull the central plate off the mechanism.
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact resistance of IK02
• Fire safety
  • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
  • the plastic parts of the central plate are halogen-free
• Dimensions of finishing: 45 x 45 mm (HxW)
• Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
• Marking: CE
