Finishing set for telephone socket outlet with 2 RJ11 contacts in parallel, white

Reference code
101-69031

No longer available since February 2023

Technical datasheets
Certificaten CE-Marking

Description

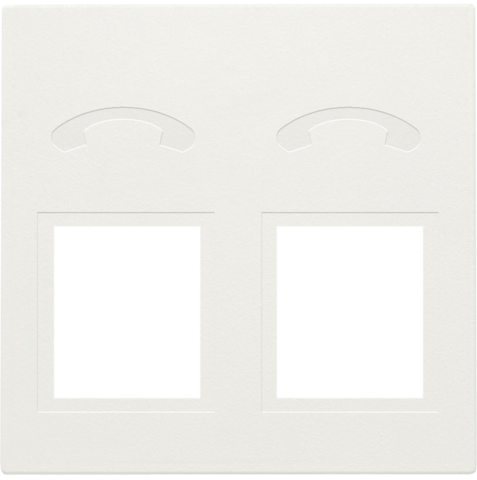

Finishing set for a mechanism with two RJ11 connections for telephone. A telephone microphone is located above the inputs. Finishing colour: white.

Specification description

Finishing set for telephone socket outlet with 2 RJ11 contacts in parallel, white.

  • Function: The central plate is equipped with two rectangular openings for the RJ11 connectors, and is clicked onto the base.
  • Material central plate: The central plate is made of rigid PC and ASA. The base material is mass-dyed.
  • Colour: white (mass-dyed, approximately NCS S 0502 - Y50R, RAL 9010)
  • Print: The central plate has two engravings (telephone symbols).
  • Dismantling: To dismount simply pull the central plate off the mechanism.
  • Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
  • Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
  • Fire safety
    • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
    • the plastic parts of the central plate are halogen-free
  • Dimensions of finishing: 45 x 45 mm (HxW)
  • Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
  • Marking: CE
