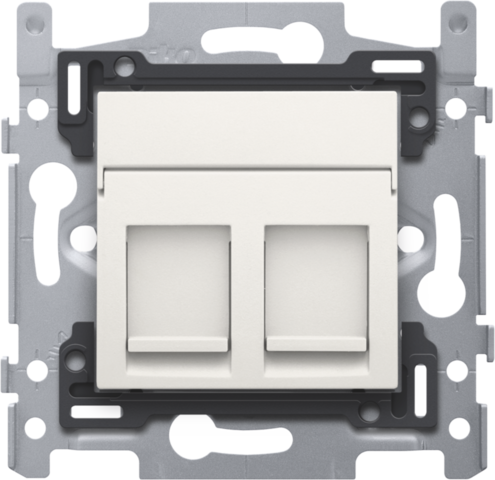

2 RJ45 connections STP Cat. 5E, flat model, incl. base 60 x 71 mm with screw fixing and finishing set, white

Compound socket outlet (base and finishing set) with 2 RJ45 connection points STP Cat. 5E to create a network connection with 2 appliances for telephone, Ethernet, IP or internet applications.

The mechanism is connected in a star configuration to the central connection cabinet using a cable of the same performance type.

The shielding ensures a more malfunction-resistant connection.

The base has internal dimensions of 45 x 45 mm and external dimensions of 60 x 71 mm and is equipped with screw fixing. Finishing colour: white.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

2 RJ45 connections STP Cat. 5E, flat model, incl. base 60 x 71 mm with screw fixing and finishing set, white.

• Protection degree: IP20
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Dimensions (HxWxD): 71 x 73 x 37 mm
• Marking: CE

2 RJ45 connections STP Cat. 5E, flat model, incl. base 60 x 71 mm with screw fixing.

• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Dimensions (HxWxD): 71 x 73 x 33.2 mm
• Marking: CE

Universal base for 45 x 45 mm functions.

• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Flush-mounting frame
  • 1 mm-thick metal
  • galvanized on all sides after cutting, even on the cut edges
  • with 4 grooves with screw hole of 7 mm
  • with 4 screw holes (indicated by a screw symbol) with a diameter of 3 mm for mounting on panels
• Fixing method
  • with screws for simple fixing in a flush-mounting box with grip surfaces
• Centre-to-centre distance
  • Simple and quick assembly of one or more mechanisms by the indication (chalk line, laser, etc.) of the centre of the flush-mounting frame
  • vertical coupling centre-to-centre distance 60 mm by sliding several bases into each other, they lock themselves automatically
  • vertical coupling centre-to-centre distance 71 mm using pre-formed lips at the bottom, by folding the lips downwards over a length of 1 mm, the bases support each other and the centre-to-centre distance is guaranteed.
  • horizontal connection of multiple bases is quick and perfect thanks to the folded-up dovetails on the left and right sides
  • extra robustness due to the folded-up edges on the outside of the base and the continuation into the inside of the base
• End border: The flush-mounting frame is equipped, both on the top and the bottom, with a dark grey, plastic end border. This border is made of PC+ASA and is joined to the flush-mounting frame using a melting process. The corners of the two end borders are equipped with rectangular openings (7.9 x 1.5 mm) each containing a multi-positional snap hook. Thanks to the snap hooks, the 4 rectangular openings ensure that the faceplate can always be attached flat to the wall, even in cases of untidy plasterwork. This works in two directions: If the flush-mounting box sticks out of the plasterwork, the multi-positional snap hooks can compensate for a 1 to 1.2 mm margin; if the flush-mounting box is sunk too deeply in the plasterwork, the snap hooks can compensate for up to a 1.8 mm margin. The end borders also have 4 round openings that ensure the correct positioning of the faceplate in relation to the central plate.
• Ambient temperature: -5 – +40 °C
• Dimensions (HxWxD): 71 x 73 mm
• Marking: CE

Adaptor 9.1, single, flat for RJ connectors 650-450xx

• Dimensions (HxWxD): 20.7 x 44.8 x 20.1 mm
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Marking: CE

Shielded RJ45 connector STP Cat. 5E, for bandwidths up to 100MHz

- maximum input current: I(Pmax) = 14mA - permissible ambient temperature: 0 to 40°C

• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Marking: CE

Central plate data 2x RJ, white.

• Material central plate: The central plate is made of rigid PC and ASA. The base material is coloured in mass.
• Colour: white (mass-dyed, approximately NCS S 0502 - Y50R, RAL 9010)
• Text field: At the top, the central plate is equipped with a hinged, non-transparent window with label. Dimensions label: 9.5 x 42.4 mm.
• Dismantling: To dismount simply pull the central plate off the mechanism.
• Protection degree: IP41 for the combination of a mechanism, central plate and faceplate
• Impact resistance: The combination of a mechanism, a central plate and a faceplate has an impact-resistance of IK06
• Fire safety
  • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
  • the plastic parts of the central plate are halogen-free
• Dimensions of finishing: 45 x 45 mm (HxW)
• Dimensions (HxWxD): 44.5 x 44.7 x 8.6 mm
• Marking: CE
