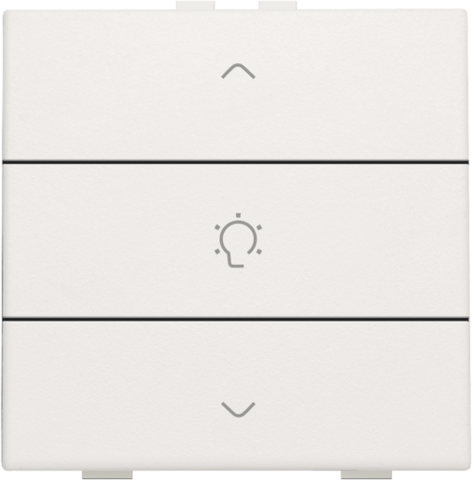

Single dimming control for Niko Home Control, white

This push button allows you to dim one light point or light circuit. It is attached to the wall-mounted printed circuit board via a click mechanism. Switch including button. Finishing colour: white.

This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.

Single dimming control for Niko Home Control, white.

• Material central plate: The central plate is made of rigid PC and ASA. The base material is mass-dyed.
• Print: Arrows printed on the top and bottom keys show whether you are dimming up or down On the middle key(s) a lamp is printed indicating the favourite button. If you press this key the lighting automatically goes to the set dim level.
• Colour: white (mass-dyed, approximately NCS S 0502 - Y50R, RAL 9010)
• Fire safety
  • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
  • the plastic parts of the central plate are halogen-free
• Input voltage: 26 Vdc (SELV, safety extra-low voltage)
• Dismantling: To dismount simply pull the central plate off the base.
• Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
• Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
• Marking: CE
