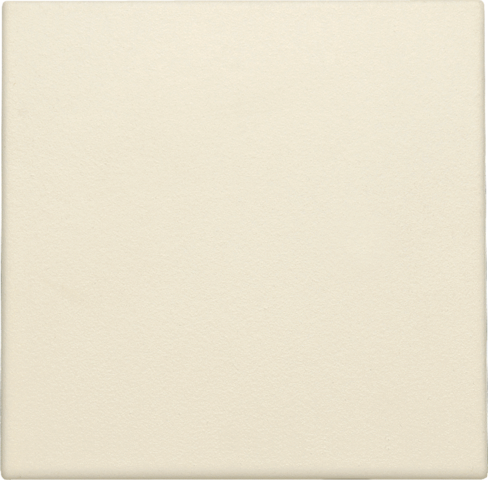

Finishing set with cable outlet for blind plate with strain relief, cream

Central blind plate is intended to perfectly conceal a TV connection, for example. The cable outlet at the bottom of the blind plate prevents the cable connection from being pulled out. Finishing colour: cream.

Finishing set with cable outlet for blind plate with strain relief, cream.

• Function: The central plate is equipped with an opening and can be expanded by breaking out the additional break-out surfaces. The central plate is clicked onto the flush-mounting frame with strain relief. This set is suitable for cables with a diameter of 6.6 up until 8.5 mm.
• Material central plate: The central plate is made of rigid PC and ASA. The base material is mass-dyed.
• Colour: cream (mass-dyed, approximately NCS S 1005 - Y10R, RAL 1013)
• Dismantling: Use a tool such as a screwdriver to dismount.
• Protection degree: The combination of a mechanism, a central plate and a faceplate has a protection degree of IP21D
• Impact resistance: After mounting, an impact-resistance of IK06 is guaranteed.
• Fire safety
  • the plastic parts of the central plate are self-extinguishing (comply with a filament test of 650 °C)
  • the plastic parts of the central plate are halogen-free
• Dimensions of finishing: 45 x 45 mm (HxW)
• Dimensions (HxWxD): 44.5 x 44.5 x 8.6 mm
• Marking: CE
