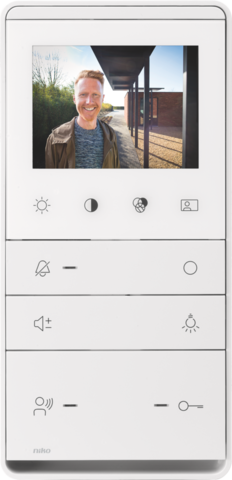

Slim internal video unit for surface mounting, with colour screen and touch buttons

Reference code
10-577
Technical datasheets
Technical manuals
Certificaten CE-Marking

Description

This slim surface-mounting internal video unit with colour screen is standardly equipped with the following functions: allow a conversation with a visitor, produce a different tone for a call at an apartment door, an internal call and main door calls from two different external video units, switch lights on and off, open doors, adjust the volume, switch off the ringtone, indicate a busy signal and call signal with LEDs, transmit a control function, allow a parallel call, make an internal call, etc. The controls consist of clear, intuitive touch buttons. The communication with the visitor is hands-free. The device can be entirely programmed using the Niko configuration software for access control.

Specification description

Slim internal video unit for surface mounting, with colour screen and touch buttons.

  • power supply voltage: 24V DC
  • input current (in standby): 0.13 mA, I(P) = 3.18 mA
  • max. input current: I(Pmax) = 147 mA
  • TFT screen with 8.9 cm (3.5") diagonal screen size
  • screen resolution: 320 x 240 pixels, RGB
  • menu languages: Dutch, French, German, English, Slovak
  • configurable with the Niko configuration software for access control
  • weight: 227 g
  • Wiring technique: 6-wire technology required
  • Finishing colour: white
  • Dimensions (HxWxD): 194 x 94 x 21 mm
